STEDI - Type X Sport

STEDI - Type X Sport

$429.99
(No reviews yet) Write a Review

LEGENDARY TYPE-X DNA

Three years since the inception of original Type-X, we’ve taken an already proven platform and completely redesigned it from the ground up. All-new reflector geometry, all-new LEDs and all-new housing.  We’ve increased the depth of the optics by 35% allowing for a perfectly collimated beam and the resultant increase in light intensity. The beam diameter strikes a sublime balance between width and throw and will send light right out to 1,050m. Four dedicated built-in wide-beam optics disperse light in the nearfield, and transition beautifully with the spot beam

STEDI DESIGN LANGUAGE

Some people call it the little things; for us, it is literally everything. We obsessed over even the most trivial geometries and design elements to achieve a visually stunning luminaire. The 4mm 304 Stainless steel bracket features our signature shoulder armor with laser-cut STEDI branding. A carefully considered orange rim surrounding the housing offers just the right amount of visual impact while ensuring that the overall look and feel plays nice equally on a Sandy Taupe Landcruiser as it will on Magnetic Grey Ranger.

ENTER THE WORLD OF STEDI

The internet is littered with mediocre lights. 98% of driving lights offered in the marketplace are off the shelf imports with the reseller’s laser logo and subsequent price mark-up. Don’t even get us started on the fictitious performance claims. When you enter the world of STEDI, you’re buying into a product which is mechanically and optically engineered with our know-how and our tooling, with our reputation and warranty standing right behind it. Our lights won’t fade, turn yellow and fall-off at the first sign of corrugations. Our photometric data is lab tested, not photoshopped – We stand by it.

          - Product details and blurb care of STEDI




WHAT’S IN THE BOX

  • 2 x STEDI Type-X SPORT LED Driving Lights
  • 2 x Protective STEDI Black Out Covers
  • 1 x Easy Fit High Beam Wiring with DTP-2 Sealed Connectors, H4, HB3 Adaptor plugs to high beam. 60A Relay, Fuse, Switch
  • 3 Series Stainless Steel Nuts and Bolts
  • Rubber Shock Dampener
  • Wiring & Fitting Instructions





 Installation is available from the Cruisemaster Towing Performance Centre (352 Bilsen Road, GEEBUNG 4034). Installs available via booking Mon - Thurs 7.30am - 4.30pm Fri 7.30am - 12.30pm.

Additional charges apply.

SPECIFICATIONS

LED: 36 x OsramOslon SSL

RAW LUMENS: 20,780 (Pair)

TESTEN LUMENS: 14,950 (Pair)

AMP DRAW: 9.8A @ 13.2v (each)

POWER DRAW: 129W

CANDELA: 1,102,500cd

BEAM PATTERN: 4 x Spread 33 x Spot Beam

INGRESS PROTECTION: IP68 I Submersible up to 3m

COLOUR TEMP (CCT): 5700K

VOLTAGE COMPATIBILITY: 12v & 24v

LUMEN MAINTENANCE: 50,000 LM-80

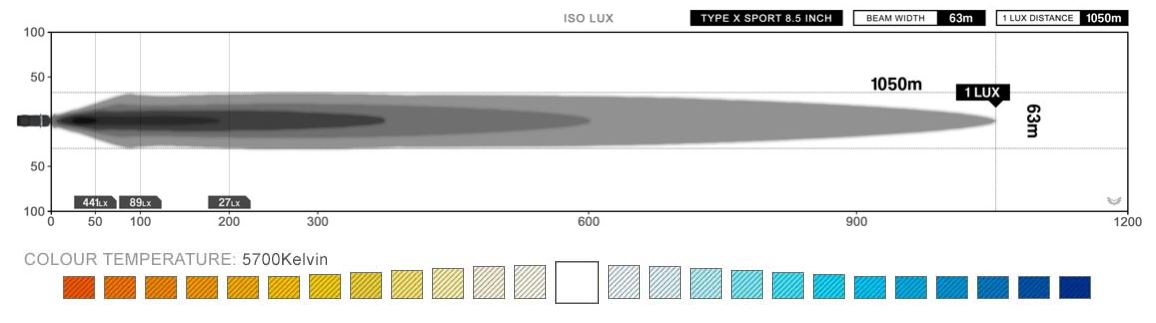

PHOTOMETRIC DATA

10 M: 11,025 Lx

50 M: 441 Lx

200 M: 27Lx

300 M: 12 Lx

400 M: 6 Lx

1,000 M: 1.1 Lx

1,155 M: 1 Lx
